WakeStation is a portable cable wakeboard system built on a two-tower, straight-line design — engineered for wakeboarding and snowboarding.

Fully portable, endlessly customizable, and ready for any location — WakeStation delivers a professional cable park experience for every skill level, from first-timers to competitive riders. Pair that with our extensive range of wake features and configurable pylon heights, and you have a system that keeps riders coming back and turns your venue into a profitable operation.

View WS system brochure

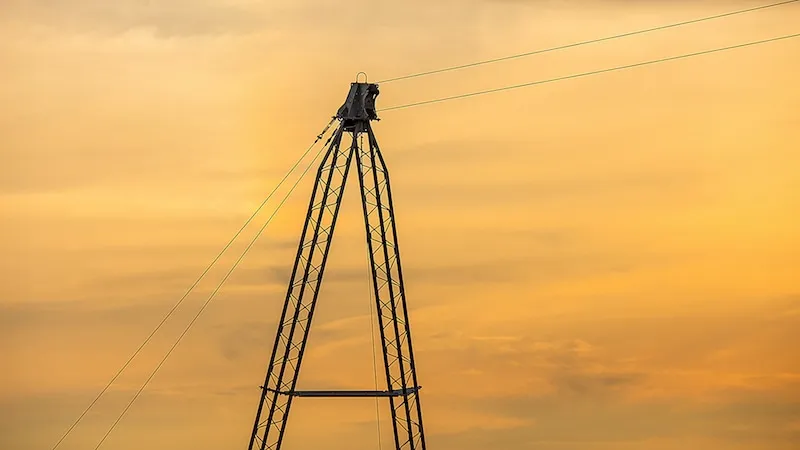

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_00
View Larger

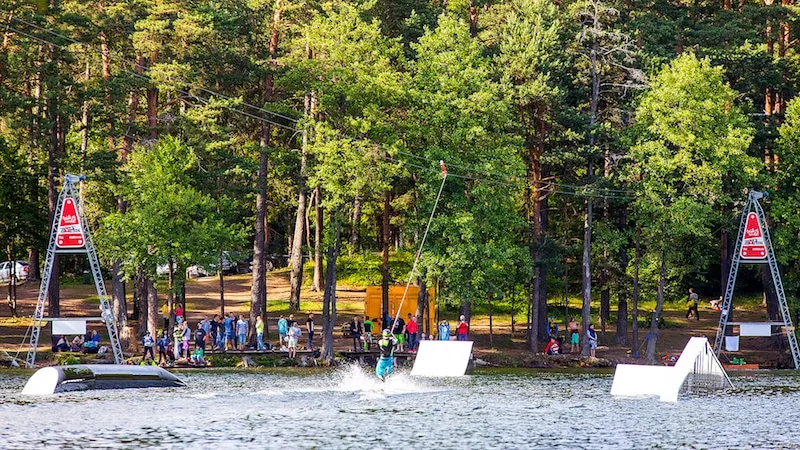

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_01
View Larger
wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_02
View Larger

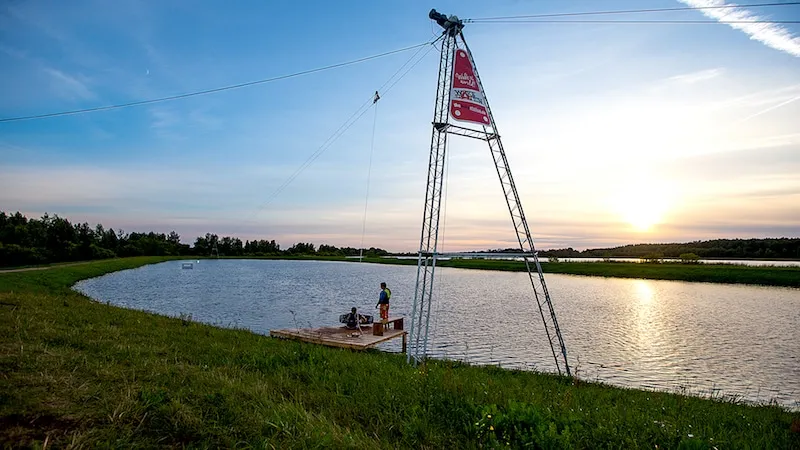

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_03
View Larger

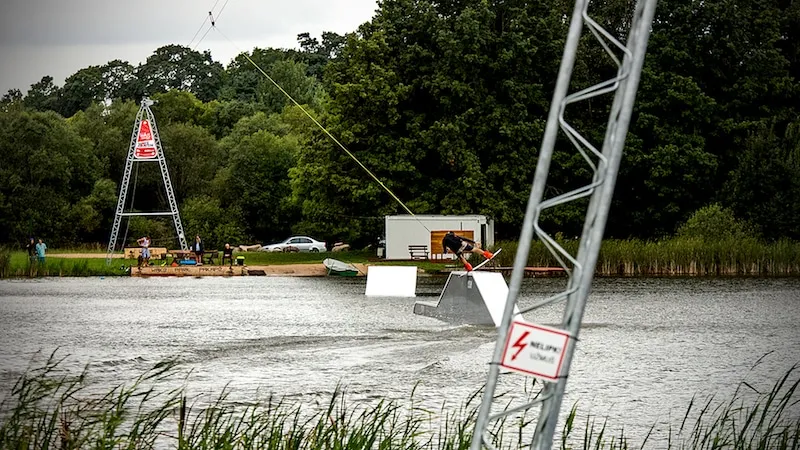

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_04
View Larger

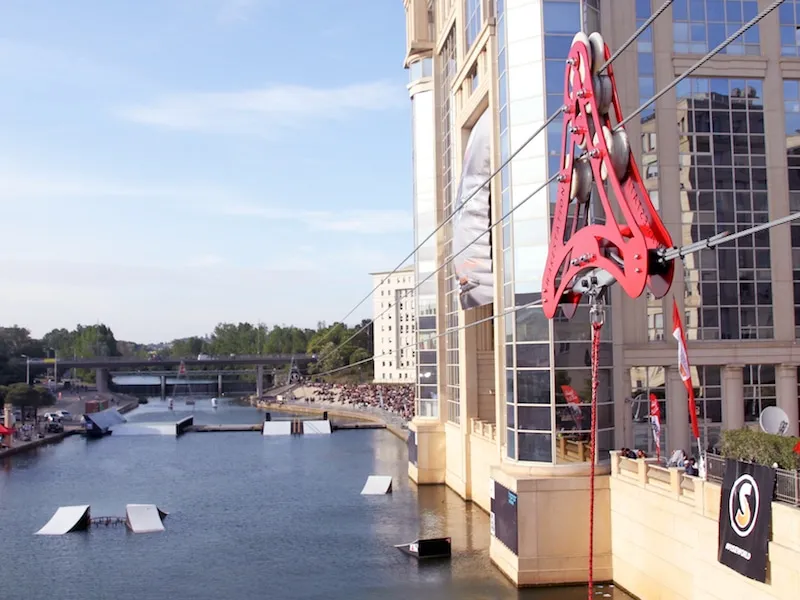

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_05
View Larger

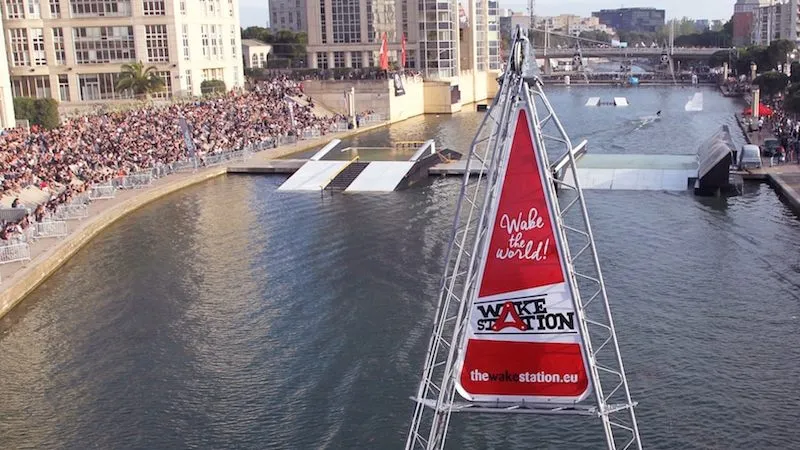

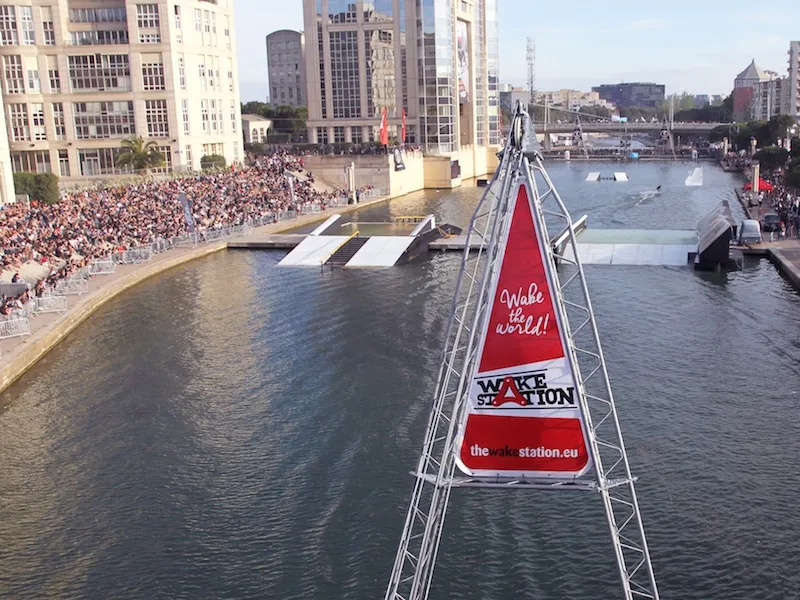

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_06
View Larger

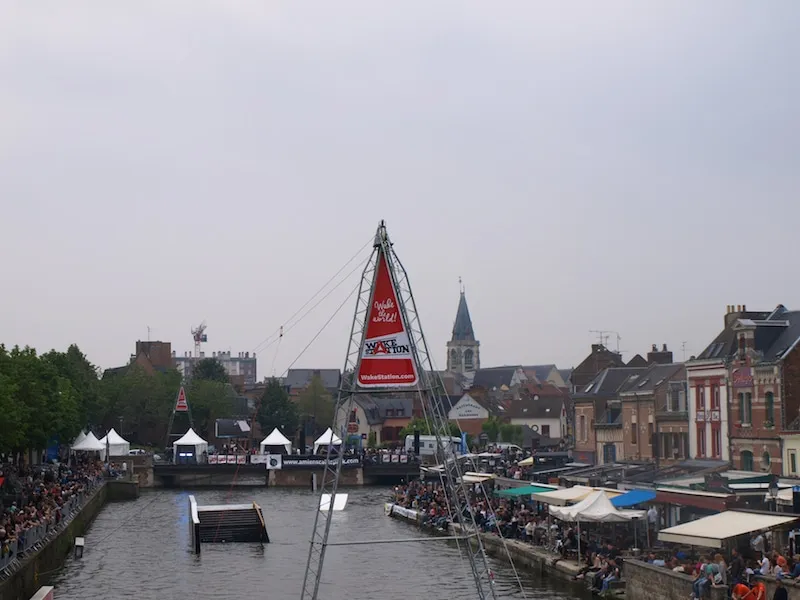

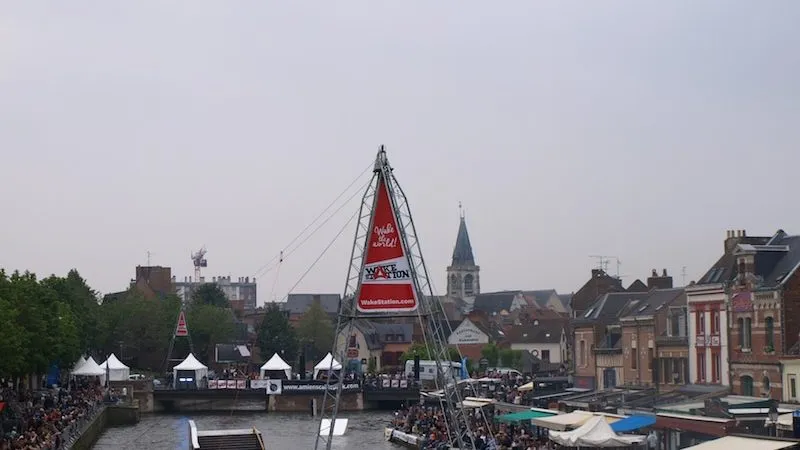

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_07
View Larger

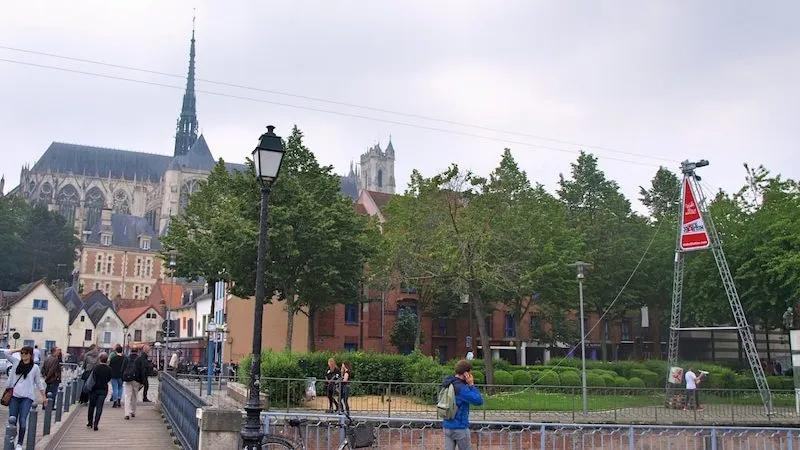

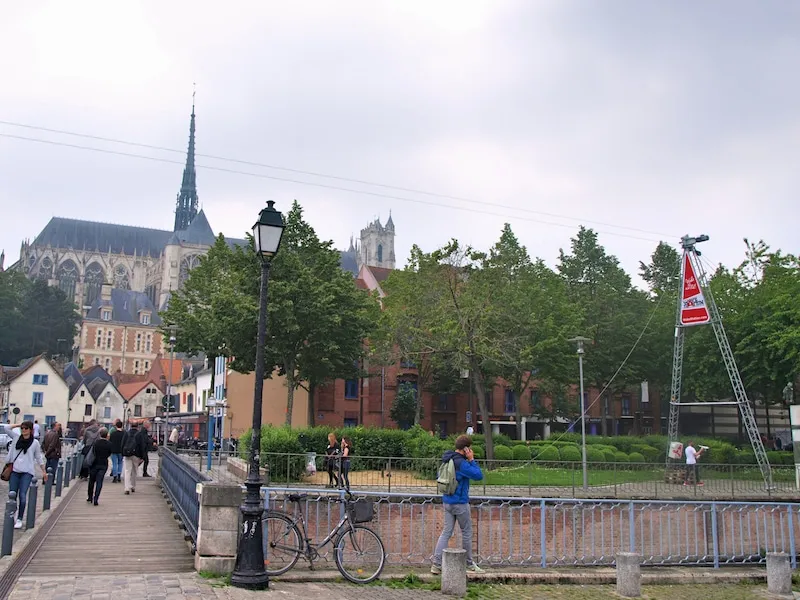

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_08
View Larger

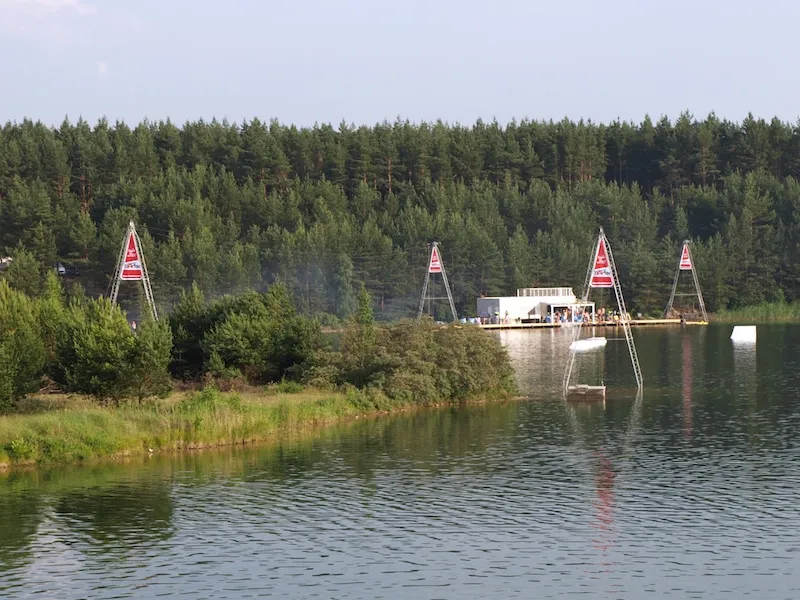

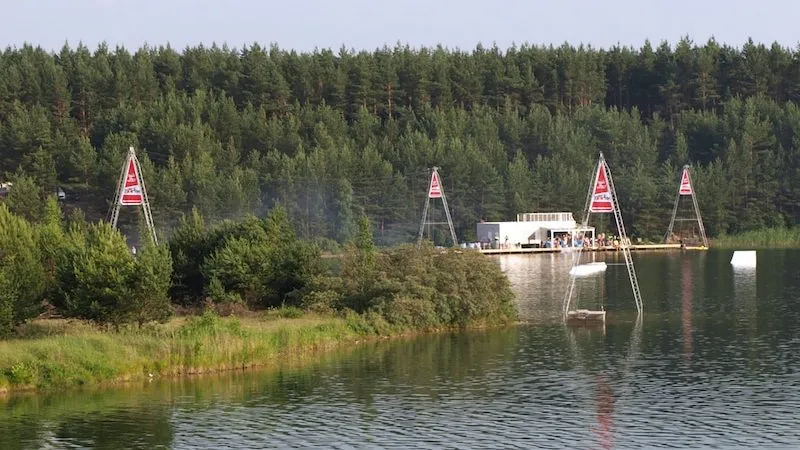

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_09
View Larger

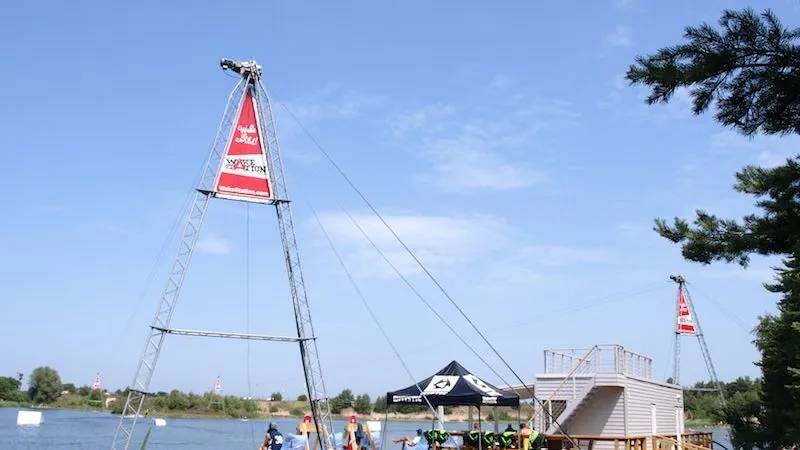

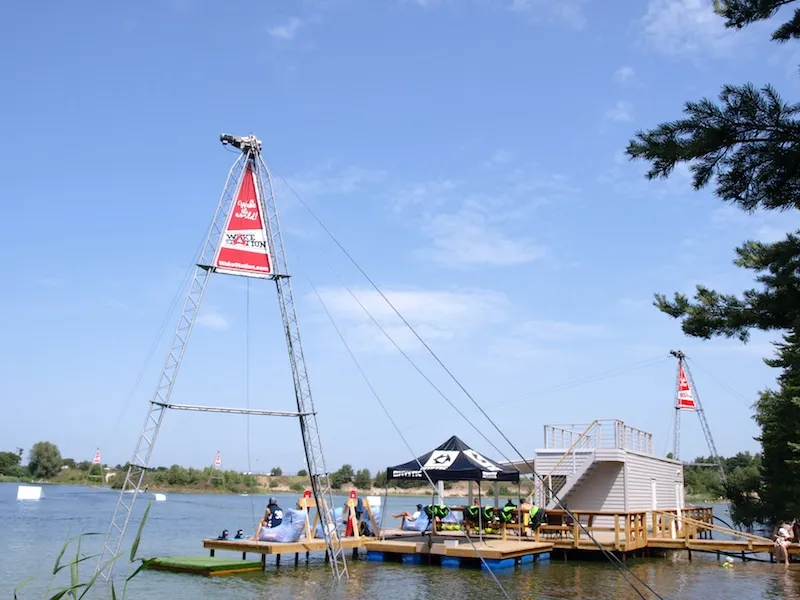

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_10
View Larger

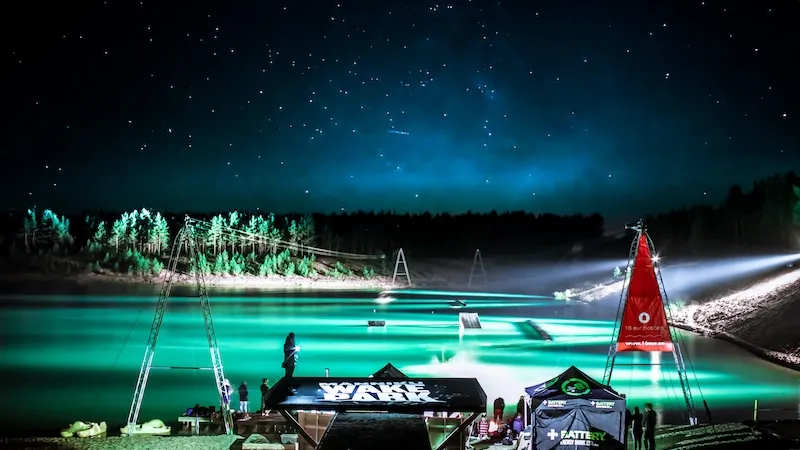

wakestation_cable-system_two-tower_2-0_wakeboarding_wake_cable-wake_11
View Larger

WAKESTATION TECHNICAL DETAILS

  • Tower height: 6.75 m standard — with alternatives from 4.0 to 19.2 m for both deepwater and on-shore installations
  • Cableway span: 50–300 m between towers, adaptable to your site
  • Vertical tower inclination: ±7° for optimized rope angle at any water level
  • Operating speed: 0–40 km/h (up to 50 km/h with PRO systems) — tunable for beginner through pro sessions
  • Power supply: 3F / 25A / 400V / 50Hz
  • Running cable diameter: 8 mm
  • Static cable diameter: 10 mm (2 per tower) for robust structural stability
  • Operating temperature range: −15 / +45 °C — built to perform in all climates
  • Wind endurance (operating): 15 m/s
  • Maximum wind load capacity: 50 m/s — engineered to withstand extreme conditions
  • Operators required: 1 — low staffing costs, efficient daily operation
  • Simultaneous riders: 1 (or 2*) *tested and operational with 2 tow ropes on a single carrier

WakeStation conforms to the essential requirements of all applicable EC directives, carries TÜV approval, and bears the CE mark — giving you and your investors full compliance confidence.

Production and installation:

– Custom system production lead time is approximately 4 weeks from order confirmation;
– Standard on-site installation is completed in as little as two working days.

Customer service:

– 24/7 online technical support — help is always available when your park is running;
– Local technical support representatives in your region;
– Dedicated, personalized service for every WakeStation customer;
– Spare parts and optional equipment held in stock at all times for fast delivery and minimal downtime.

OPTIONAL SUPPLEMENTS

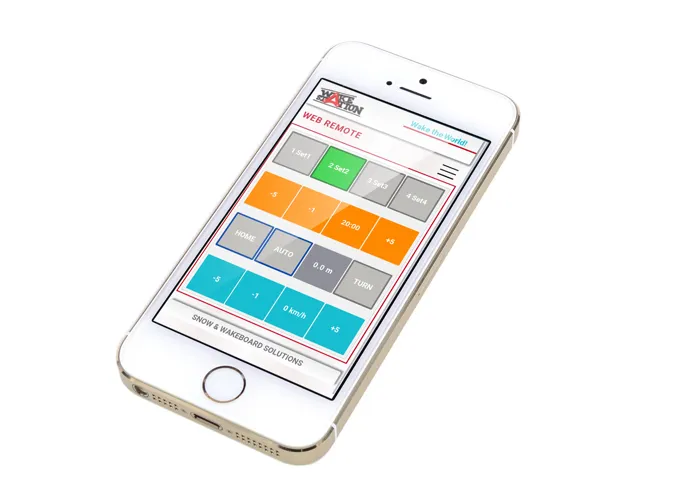

Mobile application with

real time diagnostics

Our Web User Interface is a standard feature of every WakeStation system, but to take it further we offer a Web remote upgrade that allows operators to control the system with a smartphone. This is just one of the useful software upgrades we can provide.

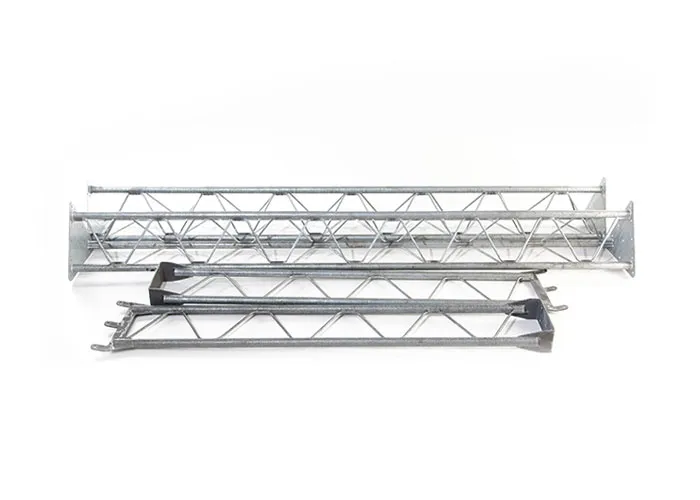

Set of extensions for

both towers (1.3m and 3.1m)

WakeStation offers a wide range of pylon heights — from 4.00 to 19.20 meters — allowing the system to be customized for different sites, water depths, and riding styles. These height variations are achieved with modular tower extensions of 1.3 and 3.1 meters.

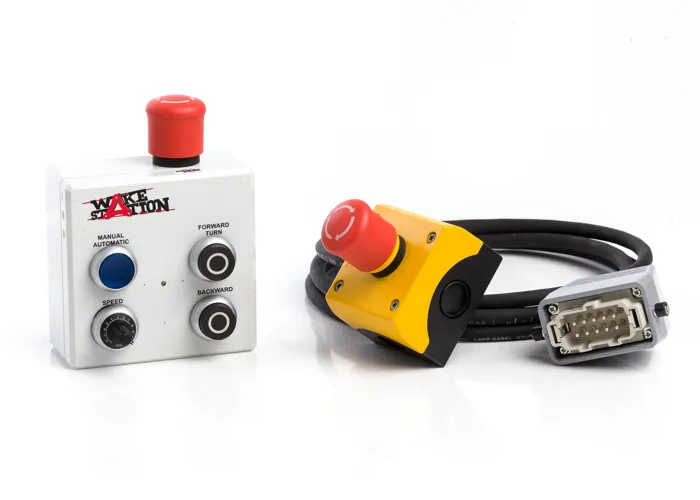

Multifunctional wireless

operator remote

Our Web remote upgrade enables a single operator to manage multiple systems simultaneously. Combined with the Self-Service upgrade, riders can control the system themselves while on the water — no operator needed. Beyond the convenience, these upgrades significantly reduce your park’s labor costs.

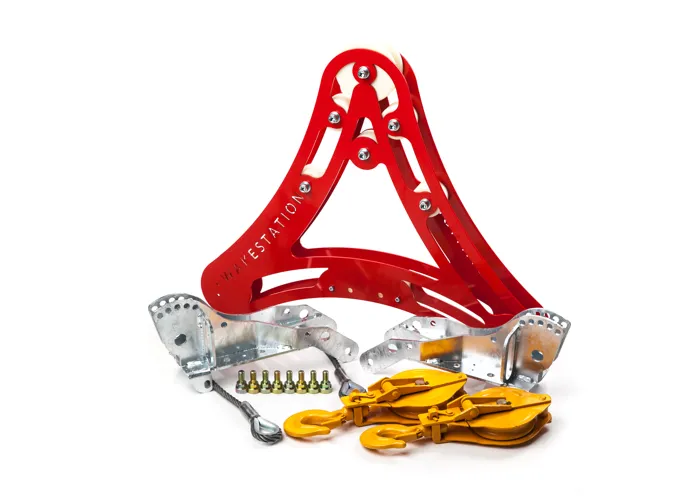

3rd cable and

smart-tensioning system

Longer tracks may require additional cable tension, so in 2014 we introduced the 3rd Cable and Smart-Tensioning System as an upgrade. This package includes an advanced carrier, a third support cable, pulleys, and a griphoist. All WakeStation systems can be retrofitted with this feature at any time.

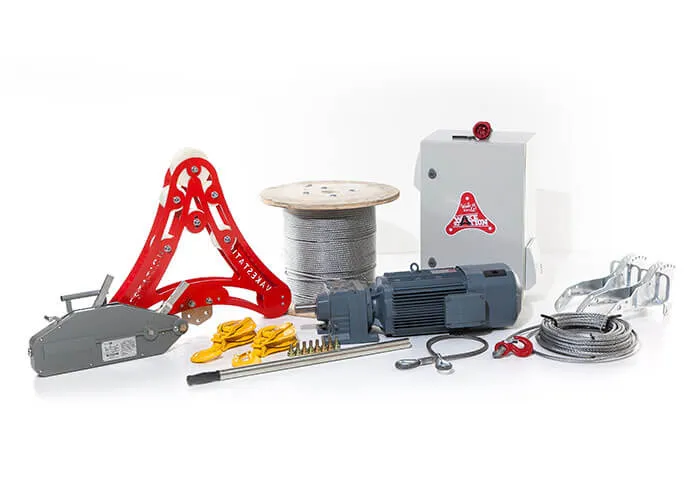

WakeStation Power

Package

For towers higher than 11.15 m and tracks longer than 180 m, we offer the Power Package upgrade. This includes a larger 7.5 kW engine, the 3rd cable system, and upgraded control electronics — ensuring uninterrupted power delivery for even the most demanding riders and conditions.
